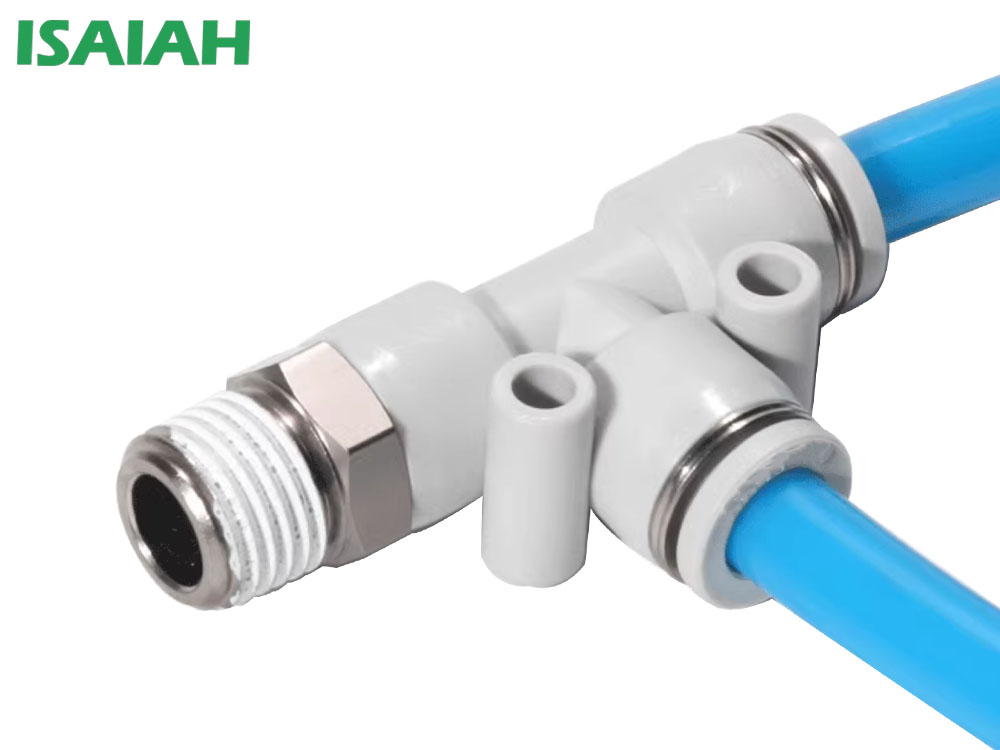

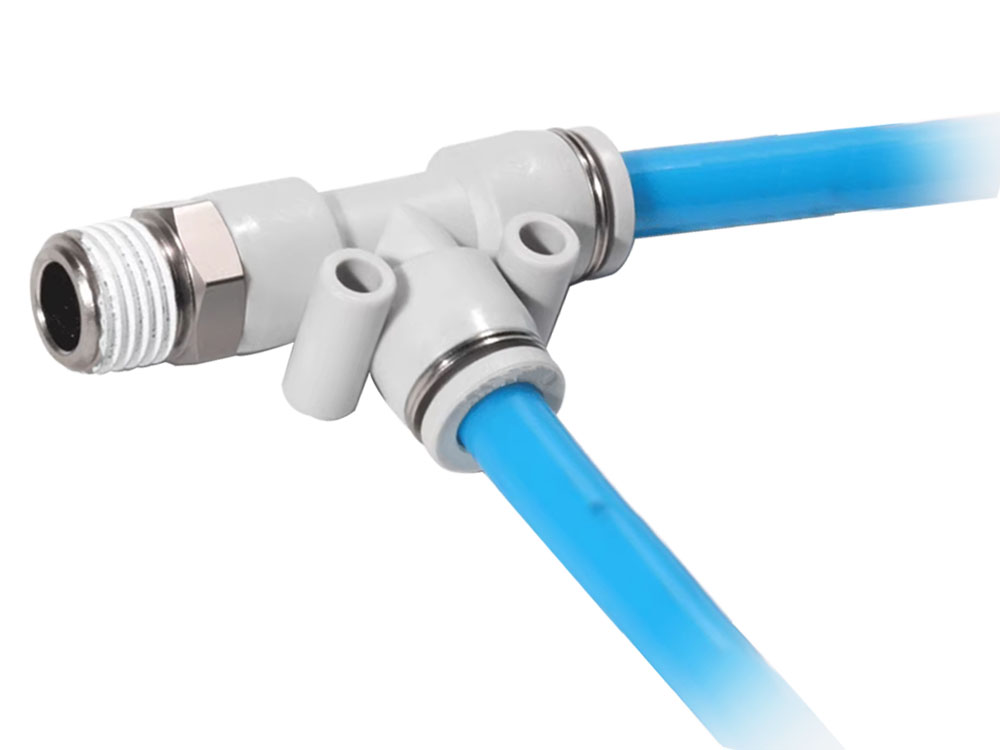

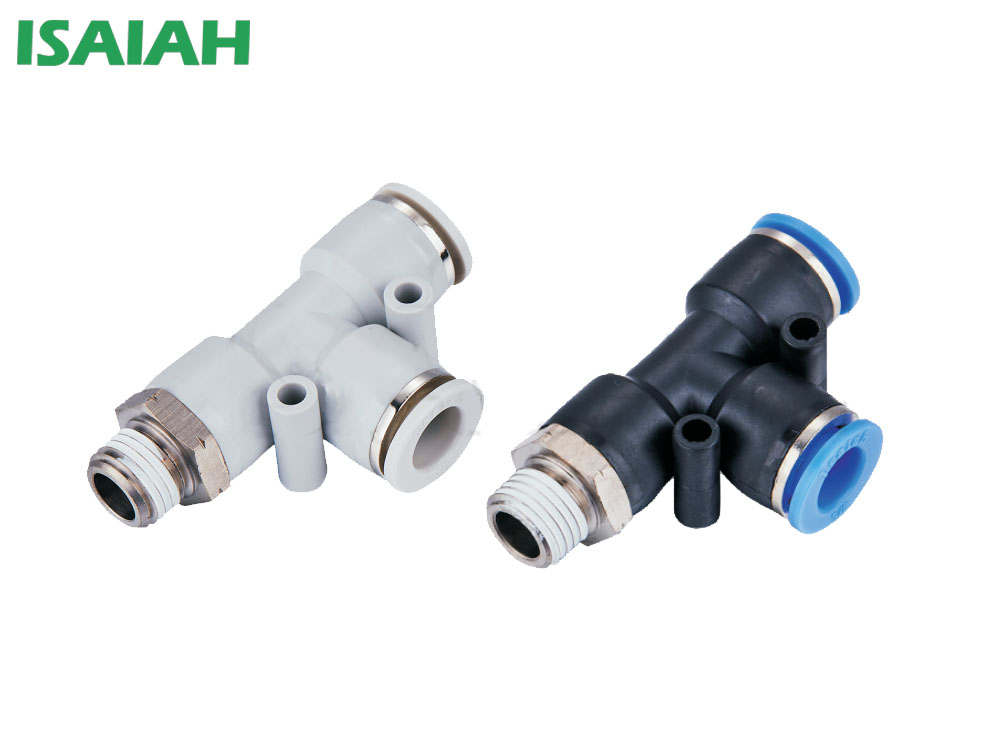

IPD 螺紋側三通氣管快插接頭，多種型號可供選擇，廣泛應用于各類氣動系統，內層鍍鎳的銅體具有抗腐蝕性能，安裝便捷，只需將氣管插入接頭即可達到密封效果，接口可360°旋轉，接入氣管后氣管也可以360°旋轉，使用更方便，避免了氣管纏繞的煩惱。拔管時按壓帽蓋即可輕松拔出氣管。

IPD螺紋側三通氣動管接頭的技術參數：

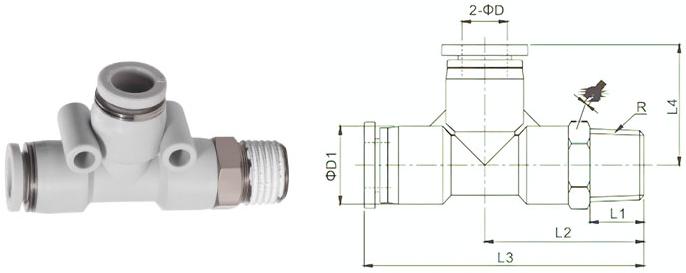

IPD螺紋側三通氣動管接頭的規格型號表：

型號	￠D	R	L1	L2	L3	L4	￠D1
IPD04-M5	4	M5	3.5	22.5	41.5	19	11.5	10
IPD04-M6		M6	4	23	42	19	11.5	10
IPD04-01		R1/8	7.5	25	44	19	11.5	10
IPD04-02		R1/4	9.5	28	47	19	11.5	14
IPD04-03		R3/8	10.5	29.5	48.5	19	11.5	17
IPD06-M5	6	M5	3.5	23.2	42.4	19.2	13.5	12
IPD06-M6		M6	4	23.7	42.9	19.2	13.5	12
IPD06-01		R1/8	7.5	25.7	44.9	19.2	13.5	12
IPD06-02		R1/4	9.5	28.2	47.5	19.2	13.5	14
IPD06-03		R3/8	10.5	29.7	49	19.2	13.5	17
IPD06-04		R1/2	13.5	33.2	52.5	19.2	13.5	21
IPD08-01	8	R1/8	7.5	29.5	52	22.5	15	14
IPD08-02		R1/4	9.5	31.5	54	22.5	15	14
IPD08-03		R3/8	10.5	33	55.5	22.5	15	17
IPD08-04		R1/2	13.05	36.5	59	22.5	15	21
IPD10-01	10	R1/8	7.5	35	63	27.8	19	17
IPD10-02		R1/4	9.5	37	65.5	27.8	19	17
IPD10-03		R3/8	10.5	38	66.5	27.8	19	17
IPD10-04		R1/2	13.5	41.5	70	27.8	19	21
IPD12-01	12	R1/8	7.5	36	65.5	29.5	21.5	21
IPD12-02		R1/4	9.5	38.5	68	29.5	21.5	21
IPD12-03		R3/8	10.5	39.5	69	29.5	21.5	21
IPD12-04		R1/2	13.5	42.5	72	29.5	21.5	21
IPD14-03	14	R3/8	10.5	40	70	30	23.5	22
IPD14-04		R1/2	13.5	43	73	30	23.5	22
IPD15-03	15	R3/8	10.5	44	77	33	26.5	24
IPD15-04		R1/2	13.5	47	80	33	26.5	24
IPD16-03	16	R3/8	10.5	44	77	33	26.5	24
IPD16-04		R1/2	13.5	47	80	33	26.5	24
IPD16-06		R3/4	15	49	82	33	26.5	27
