產品分類：氣動元件

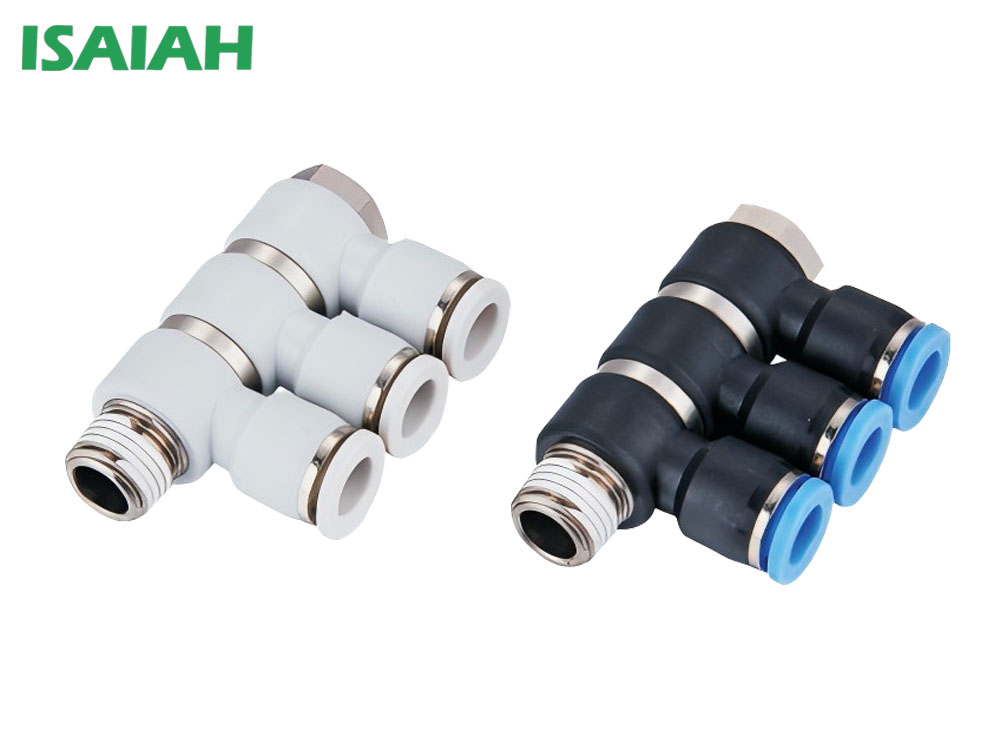

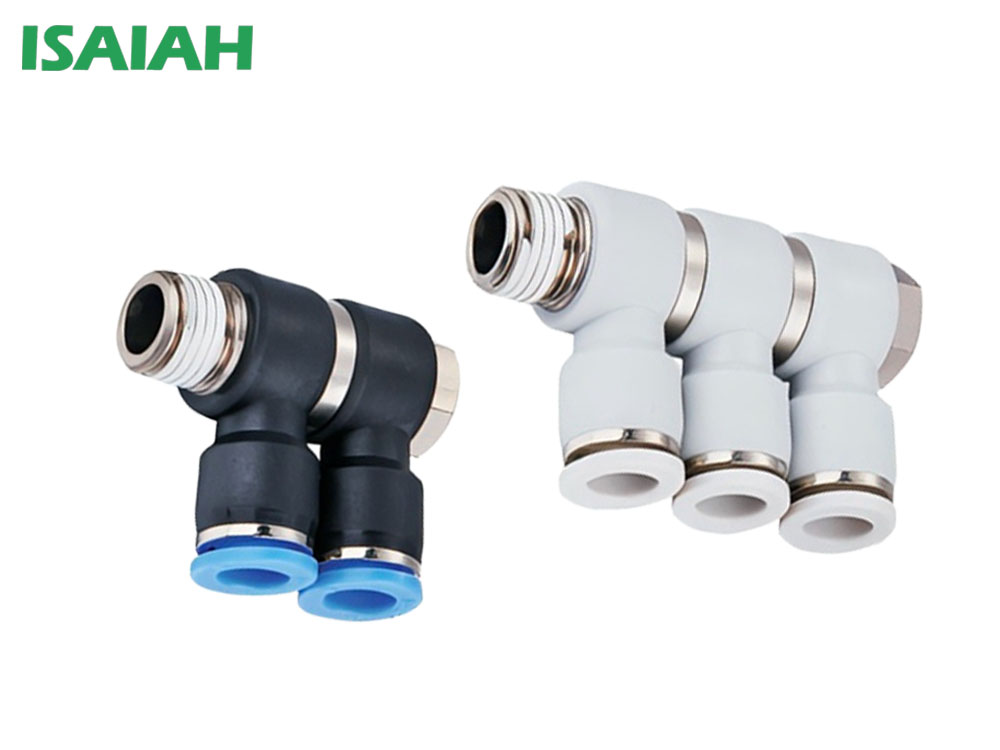

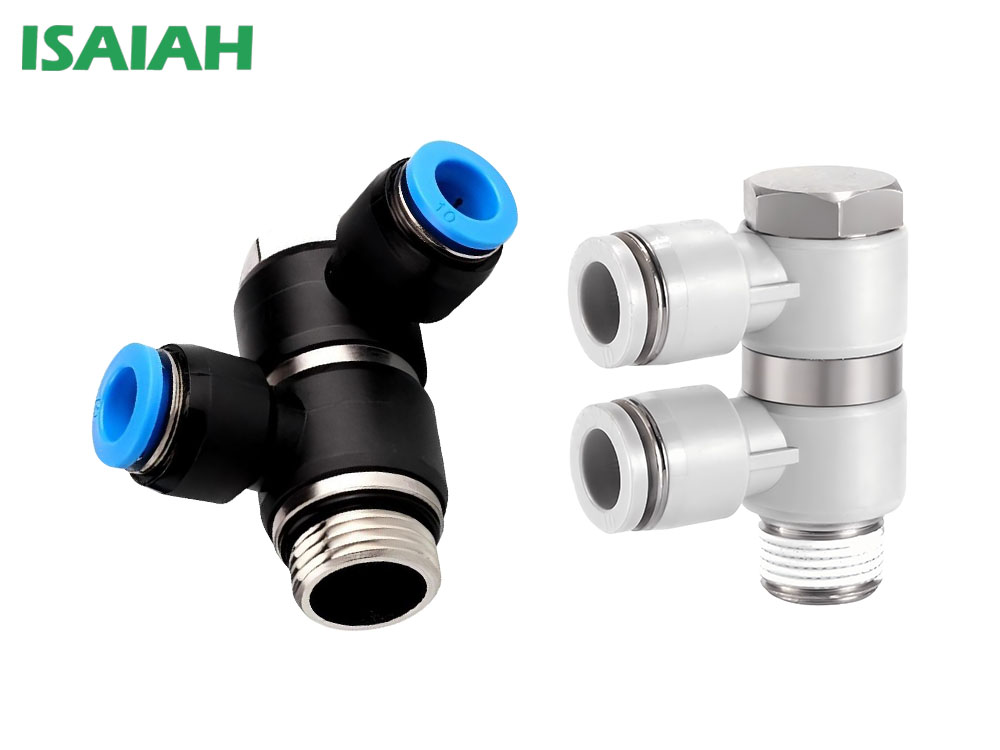

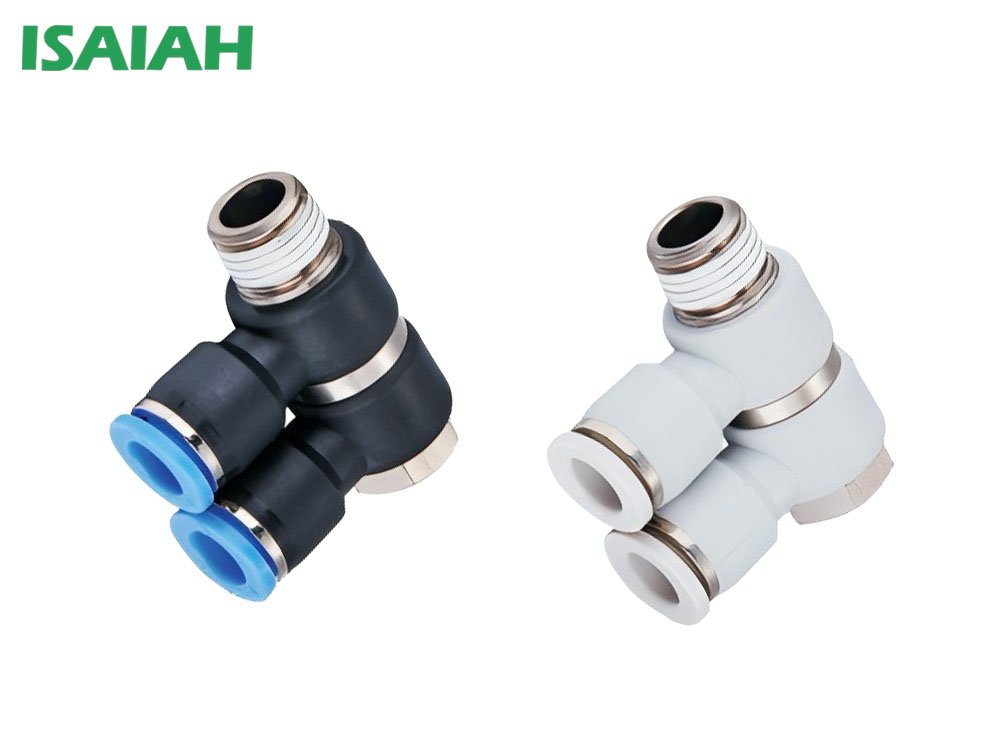

產品描述：IPHT塑料串聯直角快插式氣動管接頭，有一拖二、一拖三兩種規格，每種規格都有多種型可···

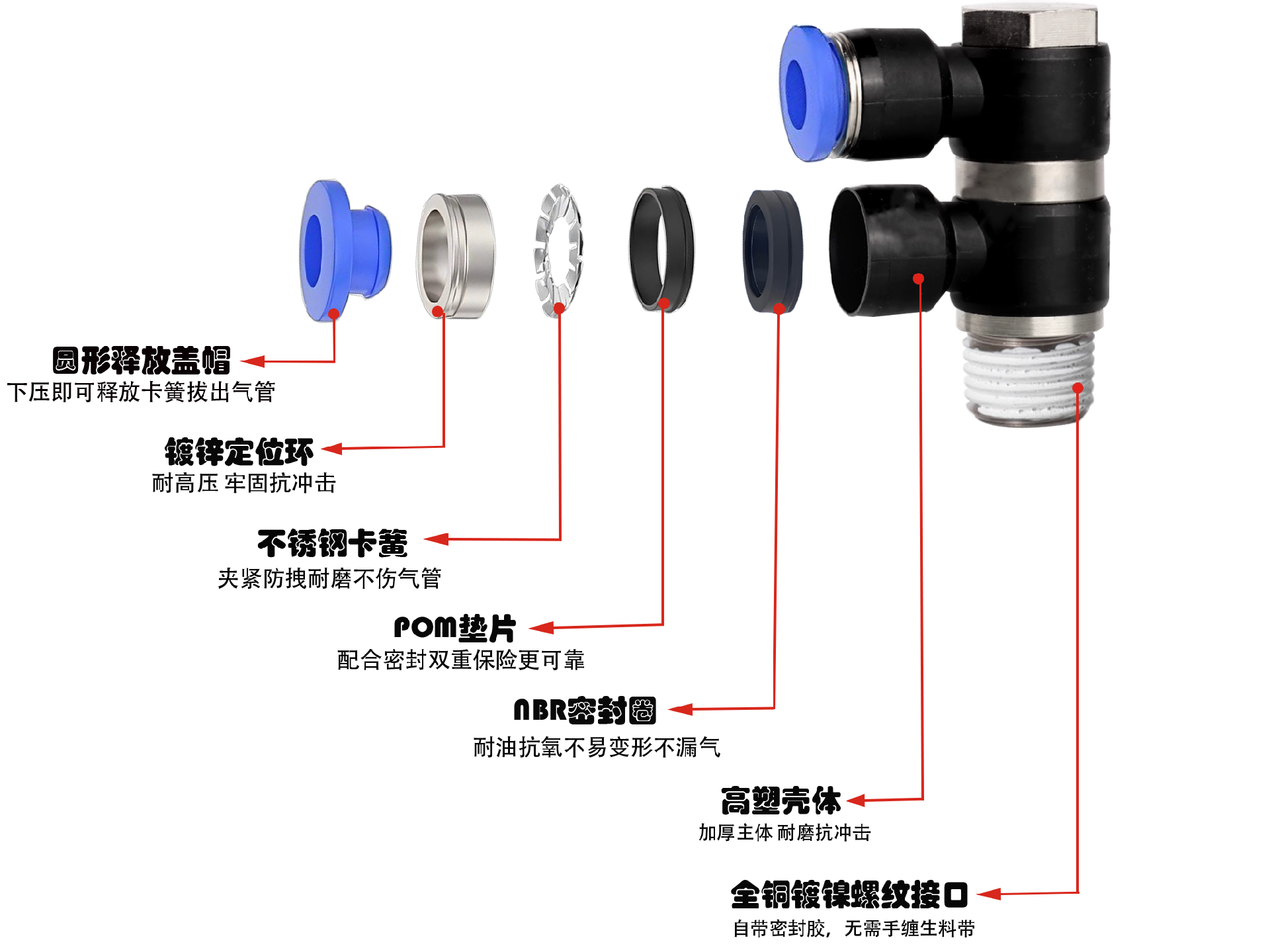

IPHT塑料串聯直角快插式氣動管接頭，有一拖二、一拖三兩種規格，每種規格都有多種型可供選擇，廣泛應用于各類氣動系統。高強度塑料殼體耐腐蝕、抗沖擊；全銅鍍鎳螺紋自帶密封膠，無需手纏生料帶，方便連接氣缸。安裝便捷，即使安裝后接頭和管體也可360°旋轉。
IPHT塑料F型串聯直角單螺紋接頭的技術參數：
| ★ 使用流體：空氣，真空 |
|
| ★ 工作壓力：0~1.0MPa(150psi) | |
| ★ 負壓：-100Kpa(-29.5in·Hg) | |
| ★ 耐壓：1.5MPa | |
| ★ 顏色：灰色/黑色 | |
| ★ 主體材質：高強塑料+鍍鎳黃銅 | |
| ★ 工作溫度：-20至70°C(-4至158°F) | |
| ★ 適用軟管：PU及尼龍管 |

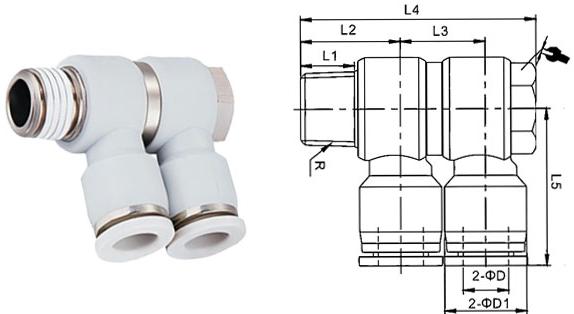

IPHT一拖二串聯直角單螺紋接頭的規格型號表：
| 型號 | ￠D | R | L1 | L2 | L3 | L4 | ￠D1 |  |
| IPHT04-01(2) | 4 | R1/8 | 7.5 | 14 | 15 | 38.5 | 11.5 | 12 |
| IPHT04-02(2) | R1/4 | 9.5 | 16.5 | 15 | 41.5 | 11.5 | 14 | |
| IPHT06-01(2) | 6 | R1/8 | 7.5 | 14 | 15 | 38.5 | 13.5 | 12 |
| IPHT06-02(2) | R1/4 | 9.5 | 16.5 | 15 | 41.5 | 13.5 | 14 | |
| IPHT06-03(2) | R3/8 | 10.5 | 18.5 | 15.7 | 49.5 | 13.5 | 19 | |
| IPHT06-04(2) | R1/2 | 13.5 | 25.5 | 21.5 | 60 | 13.5 | 24 | |
| IPHT08-01(2) | 8 | R1/8 | 7.5 | 14.5 | 15 | 38.5 | 15 | 12 |
| IPHT08-02(2) | R1/4 | 9.5 | 17.5 | 15 | 41.5 | 15 | 14 | |
| IPHT08-03(2) | R3/8 | 10.5 | 18.5 | 15.7 | 49.5 | 15 | 19 | |
| IPHT08-04(2) | R1/2 | 13.5 | 25.5 | 21.5 | 60 | 15 | 24 | |
| IPHT10-01(2) | 10 | R1/8 | 7.5 | 18 | 19 | 42.5 | 19 | 12 |
| IPHT10-02(2) | R1/4 | 9.5 | 18.5 | 21.5 | 48 | 19 | 14 | |
| IPHT10-03(2) | R3/8 | 10.5 | 20.5 | 21.5 | 53.5 | 19 | 19 | |
| IPHT10-04(2) | R1/2 | 13.5 | 25.5 | 21.5 | 60 | 19 | 24 | |
| IPHT12-02(2) | 12 | R1/4 | 9.5 | 18.5 | 21.5 | 48 | 21.5 | 14 |
| IPHT12-03(2) | R3/8 | 10.5 | 22.2 | 21.5 | 53.5 | 21.5 | 19 | |
| IPHT12-04(2) | R1/2 | 13.5 | 25.5 | 21.5 | 60 | 21.5 | 24 |

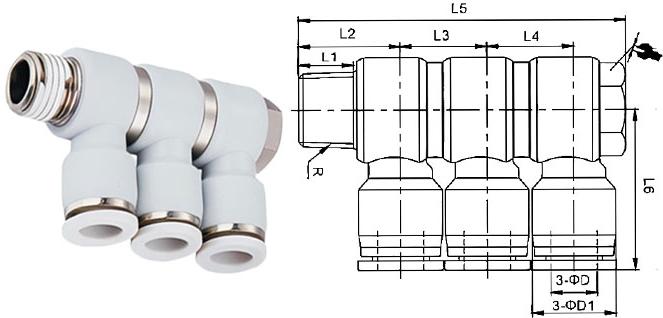

IPHT一拖三串聯直角單螺紋接頭的規格型號表：
| 型號 | ￠D | R | L1 | L2 | L3 | L4 | L5 | L6 | ￠D1 | |
| IPHT04-01(3) | 4 | R1/8 | 7.5 | 14 | 15 | 15 | 53 | 23.5 | 11.5 | 12 |
| IPHT04-02(3) | R1/4 | 9.5 | 16.5 | 15 | 15 | 56.5 | 25.5 | 11.5 | 14 | |
| IPHT06-01(3) | 6 | R1/8 | 7.5 | 14 | 15 | 15 | 53 | 23.5 | 13.5 | 12 |
| IPHT06-02(3) | R1/4 | 9.5 | 16.5 | 15 | 15 | 56.5 | 25.4 | 13.5 | 14 | |
| IPHT06-03(3) | R3/8 | 10.5 | 18.5 | 15.7 | 15.7 | 65.3 | 29.5 | 13.5 | 19 | |
| IPHT08-01(3) | 8 | R1/8 | 7.5 | 14.5 | 15 | 15 | 53 | 26.5 | 15 | 12 |
| IPHT08-02(3) | R1/4 | 9.5 | 17.5 | 15 | 15 | 56.5 | 29 | 15 | 14 | |
| IPHT08-03(3) | R3/8 | 10.5 | 18.5 | 15.7 | 15.7 | 65.3 | 30 | 15 | 19 | |
| IPHT08-04(3) | R1/2 | 13.5 | 25.5 | 21.5 | 21.5 | 81.5 | 32.5 | 15 | 24 | |
| IPHT10-01(3) | 10 | R1/8 | 7.5 | 18 | 19 | 19 | 63 | 30.5 | 19 | 12 |
| IPHT10-02(3) | R1/4 | 9.5 | 18.5 | 21.5 | 21.5 | 69.5 | 32.5 | 19 | 14 | |
| IPHT10-03(3) | R3/8 | 10.5 | 20.5 | 21.5 | 21.5 | 78 | 33 | 19 | 19 | |
| IPHT10-04(3) | R1/2 | 13.5 | 25.5 | 21.5 | 21.5 | 81.5 | 36 | 19 | 24 | |
| IPHT12-02(3) | 12 | R1/4 | 9.5 | 18.5 | 21.5 | 21.5 | 69.5 | 33.5 | 21.5 | 14 |
| IPHT12-03(3) | R3/8 | 10.5 | 22.2 | 21.5 | 21.5 | 78 | 35.5 | 21.5 | 19 | |
| IPHT12-04(3) | R1/2 | 13.5 | 25.5 | 21.5 | 21.5 | 81.5 | 36.5 | 21.5 | 24 |
