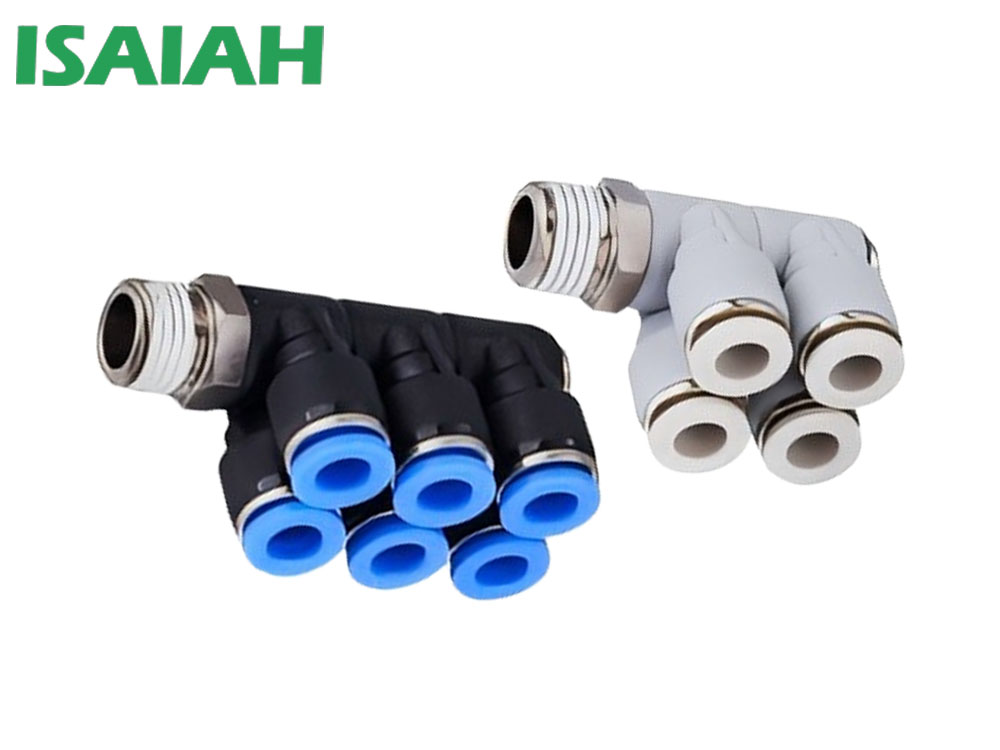

產品描述：IPAT塑料雙管串聯直角快插式氣動管接頭，有一拖四、一拖六兩種規格，每種規格都有多種···

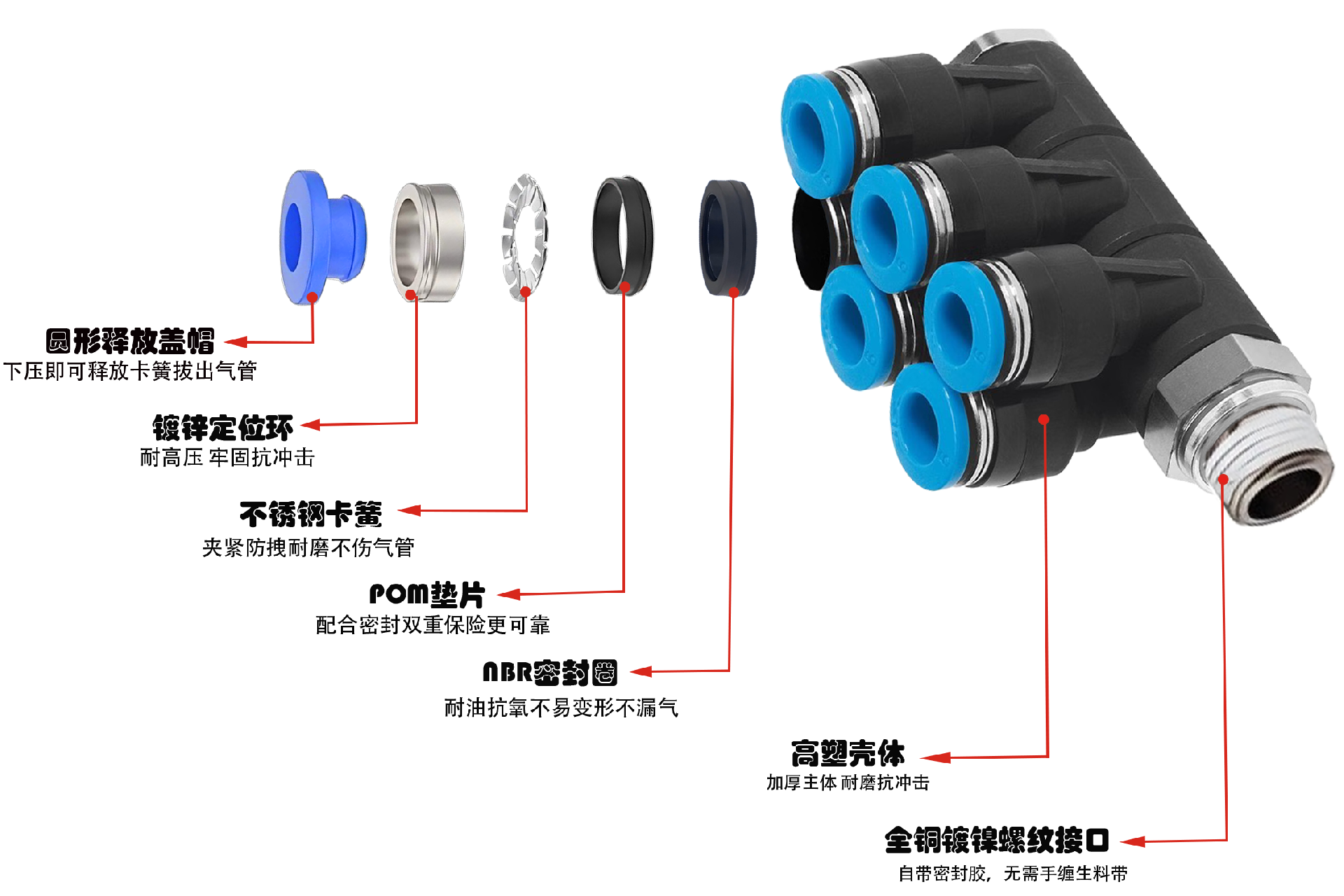

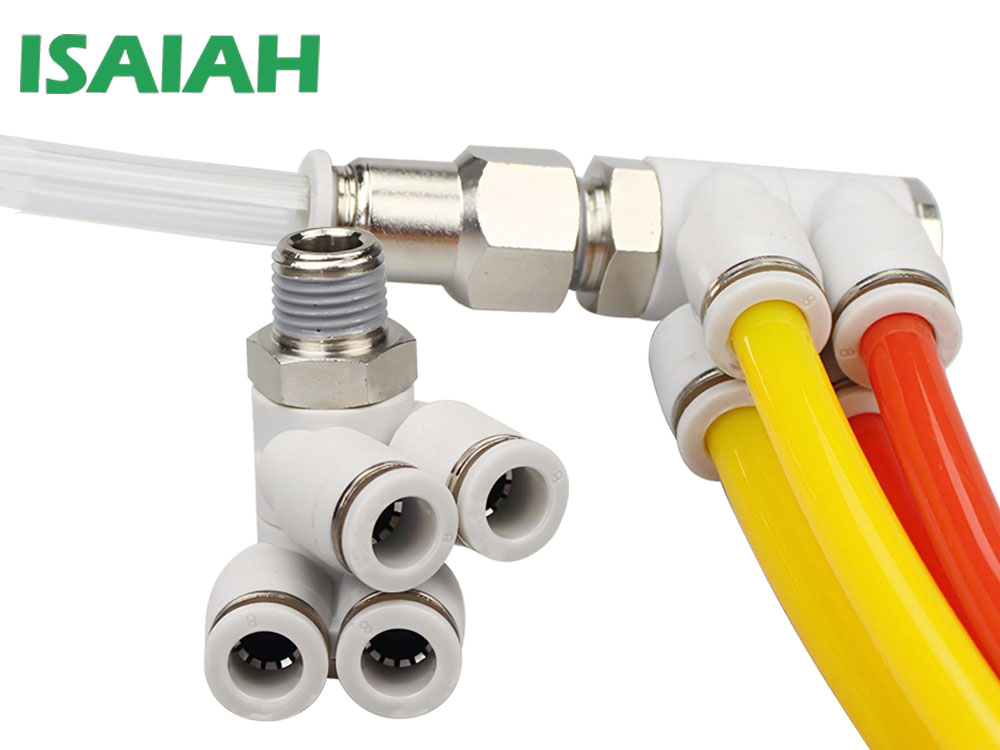

IPAT塑料雙管串聯直角快插式氣動管接頭，有一拖四、一拖六兩種規格，每種規格都有多種型可供選擇，廣泛應用于各類氣動系統。高強度塑料殼體耐腐蝕、抗沖擊；全銅鍍鎳螺紋自帶密封膠，無需手纏生料帶，方便連接氣缸。安裝便捷，即使安裝后接頭和管體也可360°旋轉。
IPAT塑料雙管串聯直角單螺紋接頭的技術參數：
| ★ 品牌：Isaiah/以賽亞 |
|
| ★ 使用流體：空氣，真空 | |
| ★ 工作壓力：0~1.0MPa(150psi) | |
| ★ 負壓：-100Kpa(-29.5in·Hg) | |
| ★ 耐壓：1.5MPa | |
| ★ 顏色：灰色/黑色 | |
| ★ 主體材質：高強塑料+鍍鎳黃銅 | |
| ★ 工作溫度：-20至70°C(-4至158°F) | |
| ★ 適用軟管：PU及尼龍管 |

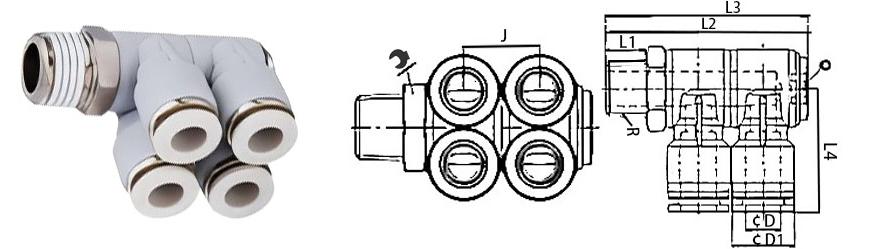

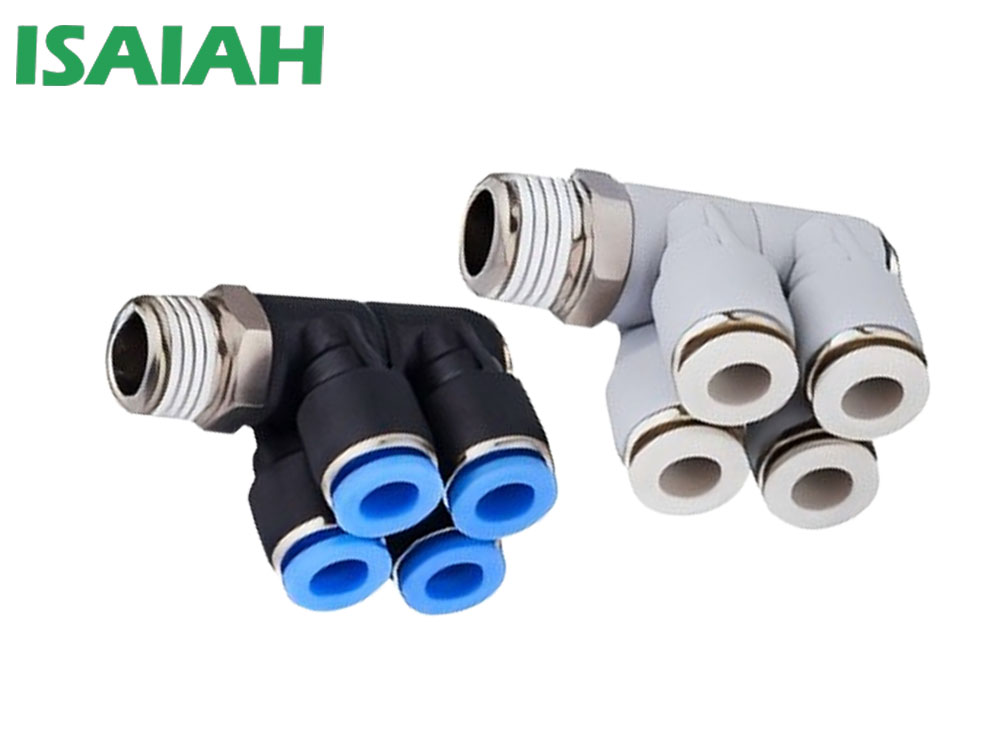

IPAT一拖四雙管串聯直角接頭的規格型號表：
| 型號 | ￠D | R | L1 | L2 | L3 | L4 | ￠D1 | J |  |  |
| IPAT04-01(2) | 4 | R1/8 | 7.5 | 18.5 | 42 | 24 | 13 | 14 | 5 | 14 |
| IPAT04-02(2) | R1/4 | 9.5 | 20.5 | 44 | 24 | 13 | 14 | 5 | 14 | |
| IPAT04-03(2) | R3/8 | 10.5 | 22 | 45.5 | 24 | 13 | 14 | 5 | 17 | |
| IPAT06-01(2) | 6 | R1/8 | 7.5 | 18.5 | 42 | 24 | 13 | 14 | 5 | 14 |
| IPAT06-02(2) | R1/4 | 9.5 | 20.5 | 44 | 24 | 13 | 14 | 5 | 14 | |
| IPAT06-03(2) | R3/8 | 10.5 | 22 | 45.5 | 24 | 13 | 14 | 5 | 17 | |
| IPAT08-01(2) | 8 | R1/8 | 7.5 | 19.5 | 45 | 28.6 | 14.5 | 15 | 6 | 17 |
| IPAT08-02(2) | R1/4 | 9.5 | 21.5 | 47 | 28.6 | 14.5 | 15 | 6 | 17 | |
| IPAT08-03(2) | R3/8 | 10.5 | 22.5 | 48 | 28.6 | 14.5 | 15 | 6 | 17 | |
| IPAT08-04(2) | R1/2 | 13.5 | 26 | 51.5 | 28.6 | 14.5 | 15 | 6 | 21 | |
| IPAT10-02(2) | 10 | R1/4 | 9.5 | 27 | 58.5 | 34 | 18 | 19 | / | 21 |
| IPAT10-03(2) | R3/8 | 10.5 | 28 | 59.5 | 34 | 18 | 19 | / | 21 | |
| IPAT10-04(2) | R1/2 | 13.5 | 31 | 62.5 | 34 | 18 | 19 | / | 21 | |
| IPAT12-02(2) | 12 | R1/4 | 9.5 | 30.5 | 66.5 | 37.5 | 21 | 22 | / | 26 |
| IPAT12-03(2) | R3/8 | 10.5 | 31.5 | 67.5 | 37.5 | 21 | 22 | / | 26 | |
| IPAT12-04(2) | R1/2 | 13.5 | 34.5 | 70.5 | 37.5 | 21 | 22 | / | 26 |

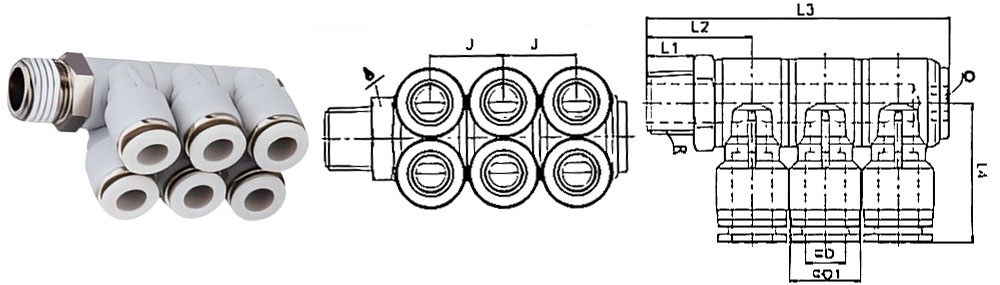

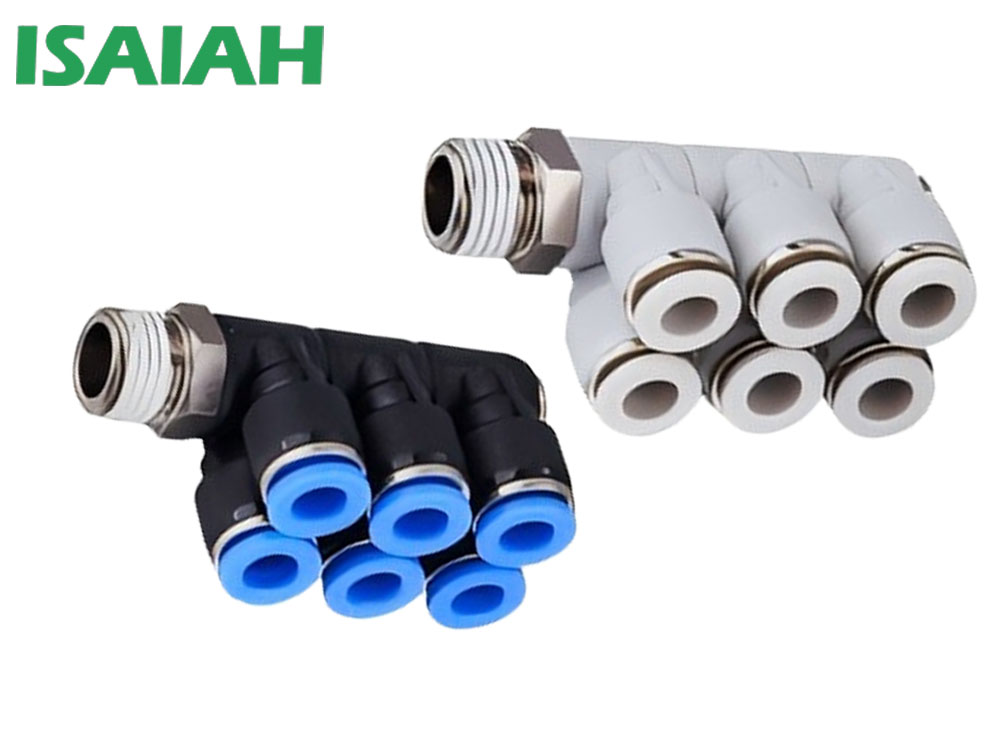

IPAT一拖六串聯直角單螺紋接頭的規格型號表：
| 型號 | ￠D | R | L1 | L2 | L3 | L4 | ￠D1 | J |  | |
| IPAT04-01(3) | 4 | R1/8 | 7.5 | 18.5 | 42 | 24 | 13 | 14 | 5 | 14 |
| IPAT04-02(3) | R1/4 | 9.5 | 20.5 | 44 | 24 | 13 | 14 | 5 | 14 | |
| IPAT04-03(3) | R3/8 | 10.5 | 22 | 45.5 | 24 | 13 | 14 | 5 | 17 | |
| IPAT06-01(3) | 6 | R1/8 | 7.5 | 18.5 | 42 | 24 | 13 | 14 | 5 | 14 |
| IPAT06-02(3) | R1/4 | 9.5 | 20.5 | 44 | 24 | 13 | 14 | 5 | 14 | |
| IPAT06-03(3) | R3/8 | 10.5 | 22 | 45.5 | 24 | 13 | 14 | 5 | 17 | |
| IPAT08-01(3) | 8 | R1/8 | 7.5 | 19.5 | 45 | 28.6 | 14.5 | 15 | 6 | 17 |
| IPAT08-02(3) | R1/4 | 9.5 | 21.5 | 47 | 28.6 | 14.5 | 15 | 6 | 17 | |
| IPAT08-03(3) | R3/8 | 10.5 | 22.5 | 48 | 28.6 | 14.5 | 15 | 6 | 17 | |
| IPAT08-04(3) | R1/2 | 13.5 | 26 | 51.5 | 28.6 | 14.5 | 15 | 6 | 21 | |
| IPAT10-02(3) | 10 | R1/4 | 9.5 | 27 | 58.5 | 34 | 18 | 19 | / | 21 |
| IPAT10-03(3) | R3/8 | 10.5 | 28 | 59.5 | 34 | 18 | 19 | / | 21 | |
| IPAT10-04(3) | R1/2 | 13.5 | 31 | 62.5 | 34 | 18 | 19 | / | 21 | |
| IPAT12-02(3) | 12 | R1/4 | 9.5 | 30.5 | 66.5 | 37.5 | 21 | 22 | / | 26 |
| IPAT12-03(3) | R3/8 | 10.5 | 31.5 | 67.5 | 37.5 | 21 | 22 | / | 26 | |
| IPAT12-04(3) | R1/2 | 13.5 | 34.5 | 70.5 | 37.5 | 21 | 22 | / | 26 |
