產品分類：氣動元件

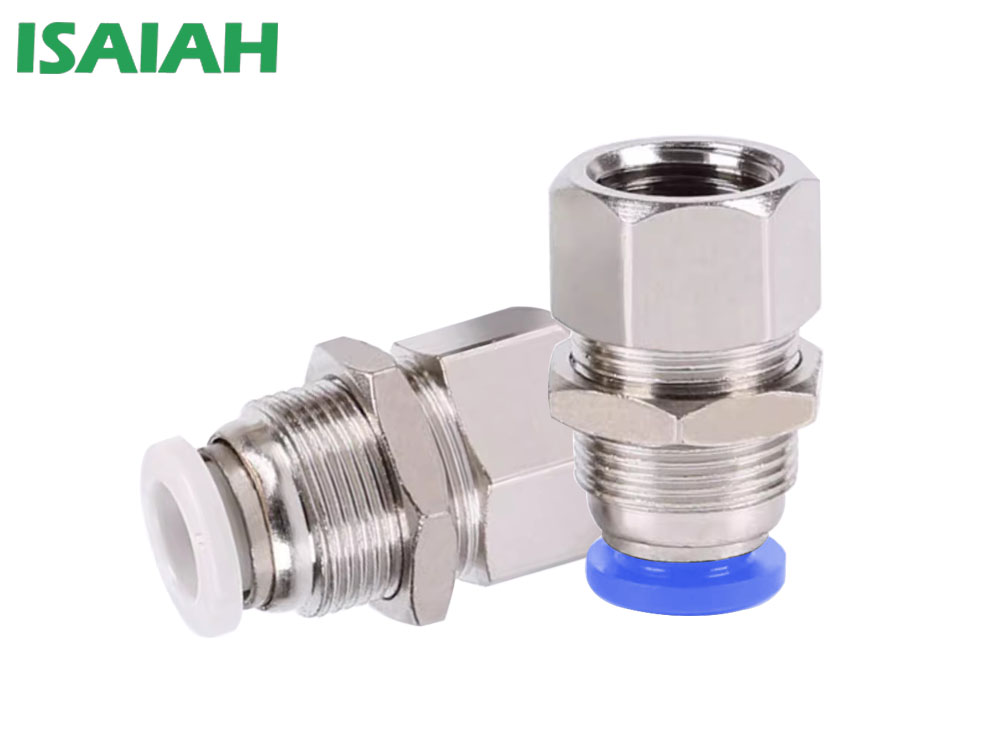

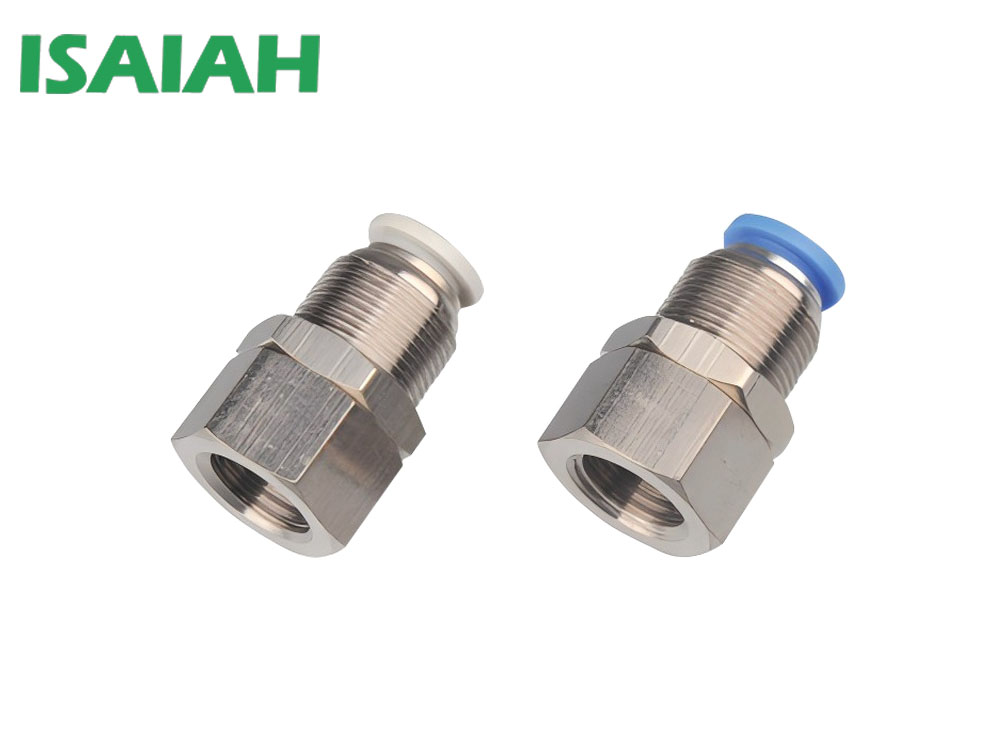

產品描述：IPMF快插式氣管接頭，內螺紋直通，穿板安裝，純銅體表面鍍鎳，選用優質不銹鋼卡簧和NB···

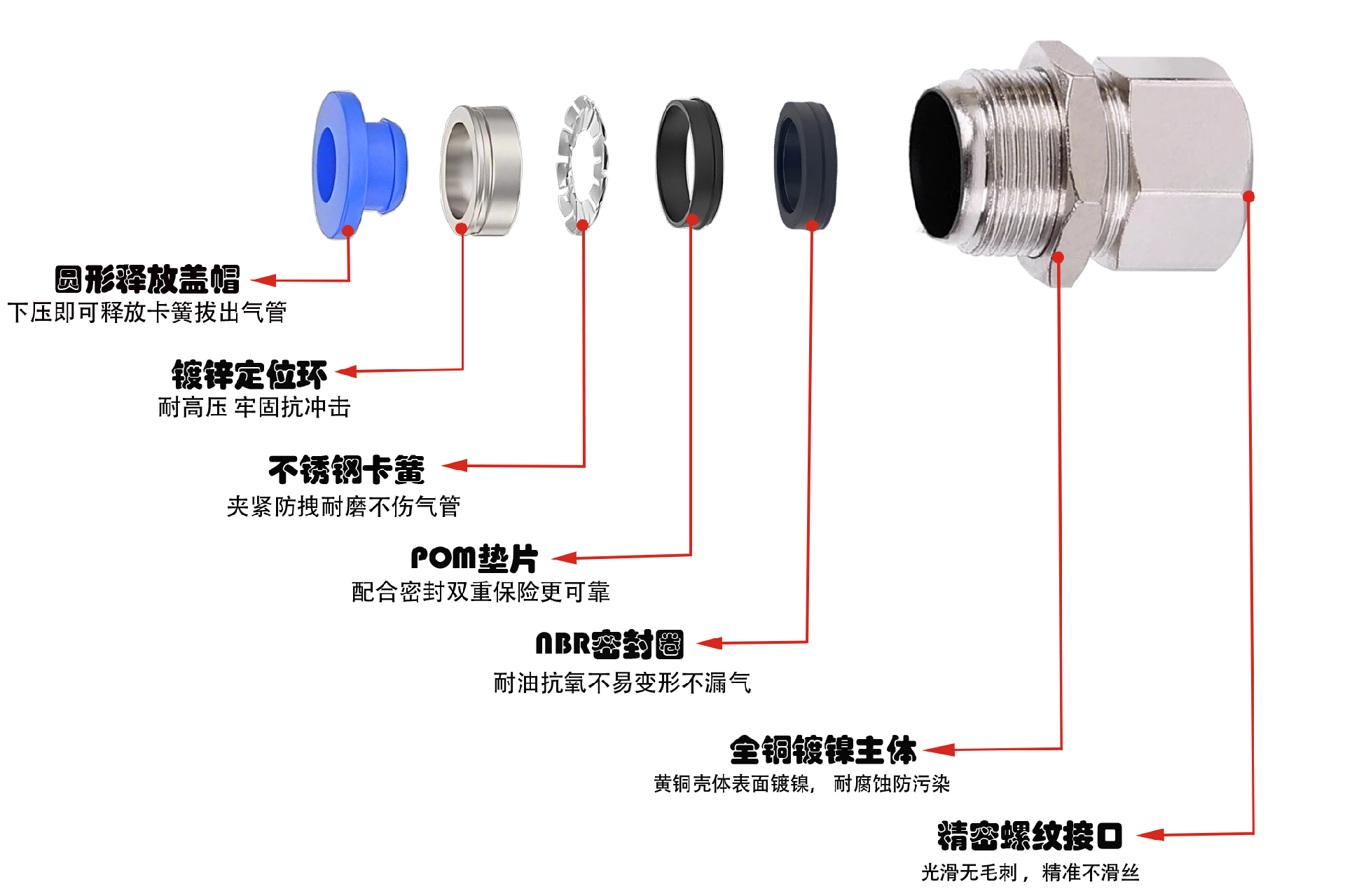

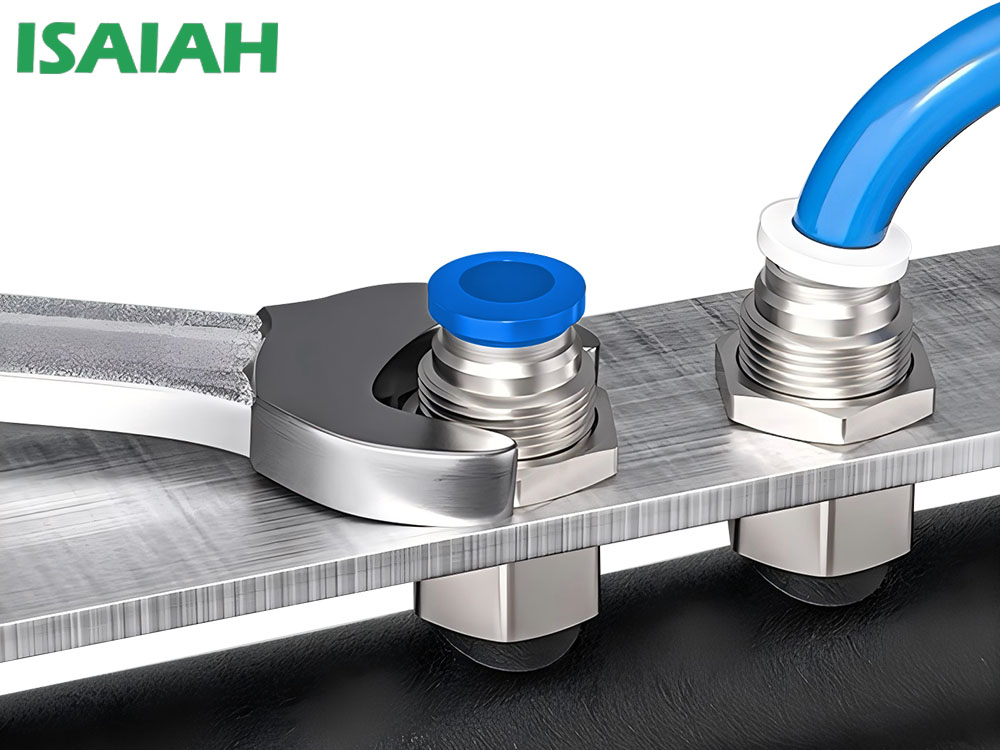

IPMF快插式氣管接頭，內螺紋直通，穿板安裝，純銅體表面鍍鎳，選用優質不銹鋼卡簧和NBR密封圈，堅固防腐密封性能優秀，具有多種型號規格，廣泛用于各類氣動系統。氣管插拔簡單方便，即插即用，接頭與氣管連接部分安全可靠不跑氣，且可360°旋轉。
IPMF隔板內螺紋直通接頭的技術參數：
| ★ 品牌：Isaiah/以賽亞 |
|
| ★ 使用流體：空氣，真空 | |
| ★ 工作壓力：0~1.0MPa(150psi) | |
| ★ 負壓：-100Kpa(-29.5in·Hg) | |
| ★ 耐壓：1.5MPa | |
| ★ 顏色：灰色/藍色 | |
| ★ 主體材質：加厚鍍鎳黃銅 | |
| ★ 工作溫度：-20至70°C(-4至158°F) | |
| ★ 適用軟管：PU管、尼龍管 |

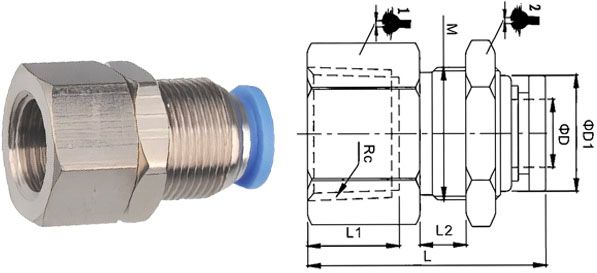

IPMF隔板內螺紋直通接頭的規格型號表：
| 型號 | ￠D | RC | L1 | L2 | L | ￠D1 | 1 | 2 | M |
| IPMF04-M5 | 4 | M5 | 5.5 | 6 | 21 | 10 | 14 | 14 | M12x1 |
| IPMF04-01 | RC1/8 | 8.5 | 6 | 24 | 10 | 14 | 14 | M12x1 | |
| IPMF04-02 | RC1/4 | 11 | 6 | 26.5 | 10 | 17 | 14 | M12x1 | |
| IPMF06-M5 | 6 | M5 | 6 | 7 | 22.5 | 12 | 17 | 17 | M14x1 |
| IPMF06-01 | RC1/8 | 8.5 | 7 | 24.8 | 12 | 17 | 17 | M14x1 | |
| IPMF06-02 | RC1/4 | 11 | 7 | 19.5 | 12 | 17 | 17 | M14x1 | |
| IPMF06-03 | RC3/8 | 12 | 7 | 30.5 | 12 | 21 | 17 | M14x1 | |
| IPMF06-04 | RC1/2 | 14 | 7 | 33 | 12 | 24 | 17 | M14x1 | |
| IPMF08-01 | 8 | RC1/8 | 8.5 | 7.5 | 26.5 | 14 | 19 | 19 | M16x1 |
| IPMF08-02 | RC1/4 | 11 | 7.5 | 32 | 14 | 19 | 19 | M16x1 | |
| IPMF08-03 | RC3/8 | 12 | 7.5 | 34.3 | 14 | 21 | 19 | M16x1 | |
| IPMF08-04 | RC1/2 | 14 | 7.5 | 36.5 | 14 | 24 | 19 | M16x1 | |
| IPMF10-01 | 10 | RC1/8 | 8.5 | 9.5 | 30 | 17 | 24 | 24 | M20x1 |
| IPMF10-02 | RC1/4 | 11 | 9.5 | 32.5 | 17 | 24 | 24 | M20x1 | |
| IPMF10-03 | RC3/8 | 12 | 9.5 | 34 | 17 | 24 | 24 | M20x1 | |
| IPMF10-04 | RC1/2 | 14 | 9.5 | 38 | 17 | 24 | 24 | M20x1 | |
| IPMF12-01 | 12 | RC1/8 | 8.5 | 10 | 31.5 | 20 | 24 | 26 | M22x1 |
| IPMF12-02 | RC1/4 | 11 | 10 | 34 | 20 | 24 | 26 | M22x1 | |
| IPMF12-03 | RC3/8 | 12 | 10 | 35 | 20 | 24 | 26 | M22x1 | |
| IPMF12-04 | RC1/2 | 14 | 10 | 37 | 20 | 24 | 26 | M22x1 |
